NB7VQ572M

1.8V / 2.5V /3.3V Differential 4:1 Mux w/Input Equalizer to 1:2 CML Clock/Data Fanout / Translator

NB7VQ572M Features

* Input Data Rate > 10 Gb/s Typical

* Data Dependent Jitter < 10 ps

* Maximum Input Clock Frequency > 6 GHz Typical

* Random Clock Jitter < 0.8 ps RMS

* Low Skew 1:2 CML Outputs, < 15 ps max

* 4:1 Multi

* Level Mux Inputs, accepts LVPECL, CML, LV

NB7VQ572M General Description

The NB7VQ572M is a high performance differential 4:1 Clock / Data input multiplexer and a 1:2 CML Clock / Data fanout buffer that operates up to 7 GHz / 10 Gbps respectively with a 1.8 V, 2.5 V, or 3.3 V power supply. Each INx / INx input pair incorporates a fixed Equalizer Receiver, which when plac.

NB7VQ572M Datasheet (172.53 KB)

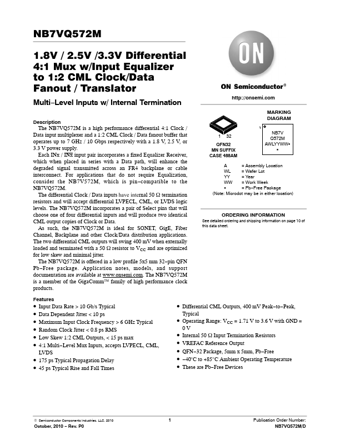

Preview of NB7VQ572M PDF

Datasheet Details

Part number:

NB7VQ572M

Manufacturer:

ON Semiconductor ↗

File Size:

172.53 KB

Description:

1.8v / 2.5v /3.3v differential 4:1 mux w/input equalizer to 1:2 cml clock/data fanout / translator.
NB7VQ572M 1.8V / 2.5V /3.3V Differential 4:1 Mux w/Input Equalizer to 1:2 CML Clock/Data Fanout / Translator Multi

*Level Inputs w/ Internal T.
