NC7SZ57

TinyLogic UHS Universal Configurable Two-Input Logic Gates

NC7SZ57 Features

* Ultra High

* Speed

* Capable of Implementing any Two

* Input Logic Functions

* Typical Usage Replaces Two (2) TinyLogic Gate Devices

* Reduces Part Counts in Inventory

* Broad VCC Operating Range: 1.65 V to 5.5 V

* Power Down High Impednc

NC7SZ57 General Description

The NC7SZ57 and NC7SZ58 are universal configurable two

*input logic gates. Each device is capable of being configured for 1 of 5 unique two

*input logic functions. Any possible two

*input combinatorial logic function can be implemented, as shown in the Function Selection Table. .

NC7SZ57 Datasheet (473.45 KB)

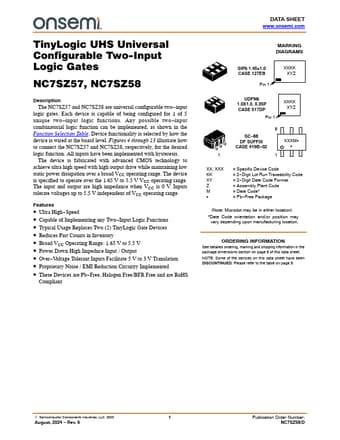

Preview of NC7SZ57 PDF

Datasheet Details

Part number:

NC7SZ57

Manufacturer:

ON Semiconductor ↗

File Size:

473.45 KB

Description:

Tinylogic uhs universal configurable two-input logic gates.
