NCV7001 Datasheet - ON Semiconductor

NCV7001 - Quad Variable Reluctance Sensor

NCV7001 Quad Variable Reluctance Sensor Interface IC The NCV7001 is a four-channel variable reluctance sensor interface IC.

Microprocessor control functions include two polarity 5.0 V programmable resets, two programmable watchdog inputs, and an enable function (OLE).

Two watchdog inputs allow control from two independent microprocessors.

Open sensor detection capability is provided.

During test mode (NTEST = Low), a high on the OLE pin should provide a high on the output.

A low under these con

NCV7001 Features

* ăFour Channel Capability

* ăDifferential Inputs

* ăOpen Sensor Detect

* ă5.0 V Supply Operation with RESET and Watchdog Features

* ăOn-Chip Input Voltage Clamping

* ăNCV Prefix for Automotive and Other Applications Requiring Site and Change Control

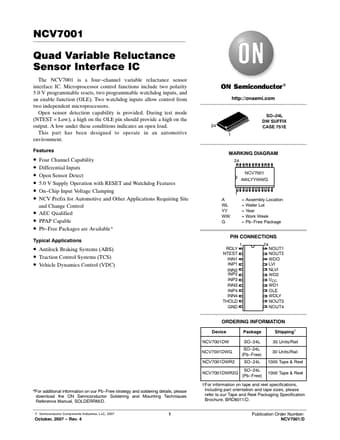

NCV7001_ONSemiconductor.pdf

Preview of NCV7001 PDF
NCV7001 Datasheet Preview Page 2 NCV7001 Datasheet Preview Page 3

Datasheet Details

Part number:

NCV7001

Manufacturer:

ON Semiconductor ↗

File Size:

91.42 KB

Description:

Quad variable reluctance sensor.
