NCV7041

Current Sense Amplifier

NCV7041 Features

* Gain Bandwidth: 100 kHz

* Input Offset Voltage: ±300 mV Max

* Input Offset Drift over Temperature: ±3 mV/°C Max

* Gain Error: ±0.3% Max

* Quiescent Current: 1.5 mA Typ

* Supply Voltage: 3 V to 5.5 V

* Common

* Mode Input Voltage Range:

NCV7041 General Description

Pin No. Pin Name Description 1

*IN Inverting input. Connect to sense resistor 2 GND Device ground 3 A1 Pre

*amp output connection 4 A2 Buffer amp input connection 5 OUT Device output 6 VS Power supply connection. Connect a bypass capacitor of 0.1 mF as close as po.

NCV7041 Datasheet (703.34 KB)

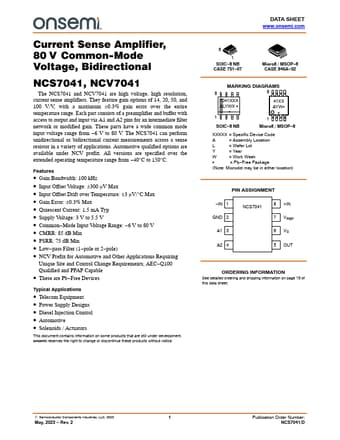

Preview of NCV7041 PDF

Datasheet Details

Part number:

NCV7041

Manufacturer:

ON Semiconductor ↗

File Size:

703.34 KB

Description:

Current sense amplifier.
Current Sense Amplifier, 80 V Common-Mode Voltage, Bidirectional NCS7041, NCV7041 The NCS7041 and NCV7041 are high voltage, high resolution, current s.
