NSV45020JZ Datasheet - ON Semiconductor

NSV45020JZ - Adjustable Constant Current Regulator & LED Driver

NSI45020JZ, NSV45020JZ Adjustable Constant Current Regulator & LED Driver 45 V, 20 40 mA + 15%, 1.5 W Package The adjustable constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD).

The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range.

It is designed with a negative temperature coefficient to pro

NSV45020JZ Features

* Robust Power Package: 1.5 Watts

* Adjustable up to 40 mA

* Wide Operating Voltage Range

* Immediate Turn-On

* Voltage Surge Suppressing

* Protecting LEDs

* AEC

* Q101 Qualified and PPAP Capable, UL94

* V0 Certified

* SBT (

NSV45020JZ-ONSemiconductor.pdf

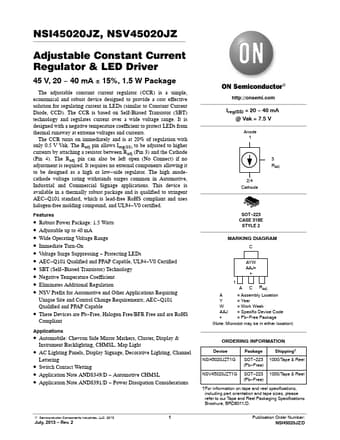

Preview of NSV45020JZ PDF
NSV45020JZ Datasheet Preview Page 2 NSV45020JZ Datasheet Preview Page 3

Datasheet Details

Part number:

NSV45020JZ

Manufacturer:

ON Semiconductor ↗

File Size:

174.46 KB

Description:

Adjustable constant current regulator & led driver.
