NTBG040N120SC1 Datasheet, Mosfet, ON Semiconductor

NTBG040N120SC1 Features

  • Mosfet
  • Typ. RDS(on) = 40 mW
  • Ultra Low Gate Charge (Typ. QG(tot) = 106 nC)
  • Low Effective Output Capacitance (Typ. Coss = 139 pF)
  • 100% Avalanche Tested

PDF File Details

Part number:

NTBG040N120SC1

Manufacturer:

ON Semiconductor ↗

File Size:

325.92kb

Download:

📄 Datasheet

Description:

Sic mosfet.

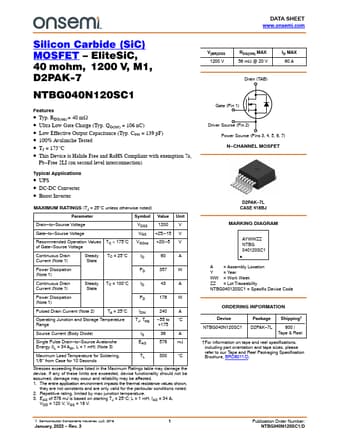

Datasheet Preview: NTBG040N120SC1 📥 Download PDF (325.92kb)
Page 2 of NTBG040N120SC1 Page 3 of NTBG040N120SC1

NTBG040N120SC1 Application

  • Applications
  • UPS
  • DC-DC Converter
  • Boost Inverter MAXIMUM RATINGS (TJ = 25°C unless otherwise noted) Parameter Symbol
