NTHL110N65S3F - Power MOSFET

ON Semiconductor

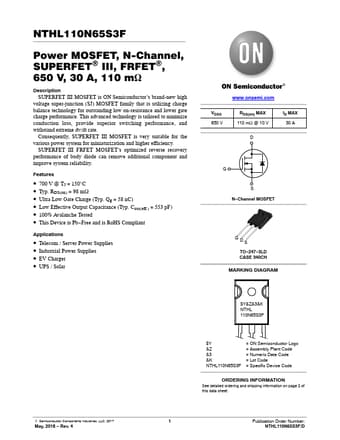

NTHL110N65S3F Datasheet Preview — Preview of NTHL110N65S3F PDF

Datasheet Details

Part number	NTHL110N65S3F
Manufacturer	ON Semiconductor ↗
File Size	326.00 KB
Description	Power MOSFET
Datasheet	NTHL110N65S3F-ONSemiconductor.pdf

NTHL110N65S3F Product details

Description

SUPERFET III MOSFET is ON Semiconductor’s brand-new high voltage super-junction (SJ) MOSFET family that is utilizing charge balance technology for outstanding low on-resistance and lower gate charge performance.This advanced technology is tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate.Consequently, SUPERFET III MOSFET is very suitable for the various power system for miniaturization and higher efficiency.SUPERFET III FRFET MOSFET

Features

700 V @ TJ = 150°C.
Typ. RDS(on) = 98 mW.
Ultra Low Gate Charge (Typ. Qg = 58 nC).
Low Effective Output Capacitance (Typ. Coss(eff. ) = 553 pF).
100% Avalanche Tested.
This Device is Pb.
Free and is RoHS Compliant.
