EPA3308A Datasheet - PCA ELECTRONICS

EPA3308A Common Mode Choke

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPA3308A & EPA3308A-RC Common Mode Choke for EMI Reduction Robust Construction to meet tough reflow process Add “-RC” after part number for RoHS Compliant Rated Current : 500 mA 1500 Vrms Isolation Electrical Parameters @ 25° C Primary Inductance (µH Min.) @ 100 KHz, 0.1 Vrms 35 Leakage Inductance (µH Max.) @ 100 KHz, 0.1 Vrms 0.3 0.75 DCR (Ω Max.) Package Mark : PCA EPA3308A(-RC) D.C. S.

EPA3308A_PCAELECTRONICS.pdf

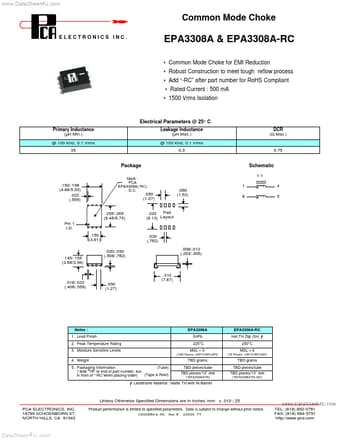

Preview of EPA3308A PDF

Datasheet Details

Part number:

EPA3308A

Manufacturer:

PCA ELECTRONICS

File Size:

134.67 KB

Description:

Common mode choke.
