EPA3308S Common Mode Choke

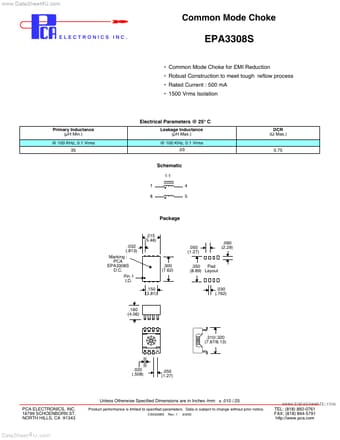

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPA3308S Common Mode Choke for EMI Reduction Robust Construction to meet tough reflow process Rated Current : 500 mA 1500 Vrms Isolation Electrical Parameters @ 25° C Primary Inductance (µH Min.) @ 100 KHz, 0.1 Vrms 35 Leakage Inductance (µH Max.) @ 100 KHz, 0.1 Vrms .03 0.75 DCR (Ω Max.) Schematic 1:1 1 8 4 5 Package .215 (5.46) .032 (.813) Marking : PCA EPA3308S D.C. Pin 1 I.D. .150 (3.81) .050.

EPA3308S_PCAELECTRONICS.pdf

EPA3308S Datasheet Preview — Preview of EPA3308S PDF

Datasheet Details

Part number:

EPA3308S

Manufacturer:

PCA ELECTRONICS

File Size:

153.32 KB

Description:

Common mode choke.
