EPA3368 14 Pin DIP and SMD 5 Tap Low-Profile Fast Logic TTL

14 Pin DIP and SMD 5 Tap Low-Profile Fast Logic TTL Compatible Active Delay Lines Compatible with standard auto-insertable equipment and can be used in either infrared or vapor phase process. Delays are ±5% or ±2 nS† DIP Part Tap Total Number SMD Part Number Delays are ±5% or ±2 nS† DIP Part Tap Total Number 5, 10, 15, 20 6, 12, 18, 24 7, 14, 21, 28 8, 16, 24, 32 9, 18, 27, 36 10, 20, 30, 40 12, 24, 36, 48 15, 30, 45, 60 20, 40, 60, 80 25, 50, 75, 100 30, 60, 90, 120 35, 70, 105, 140 †W.

EPA3368-PCAELECTRONICS.pdf

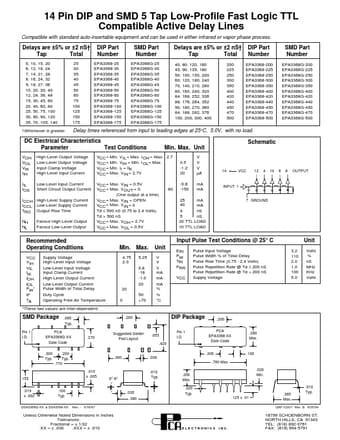

EPA3368 Datasheet Preview — Preview of EPA3368 PDF

Datasheet Details

Part number:

EPA3368

Manufacturer:

PCA ELECTRONICS

File Size:

14.31 KB

Description:

14 pin dip and smd 5 tap low-profile fast logic ttl.
