EPA3393-LF Common Mode Choke

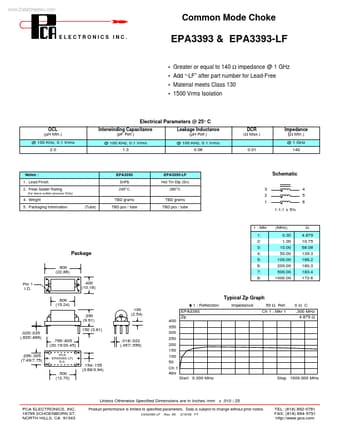

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPA3393 & EPA3393-LF Greater or equal to 140 Ω impedance @ 1 GHz Add “-LF” after part number for Lead-Free Material meets Class 130 1500 Vrms Isolation Electrical Parameters @ 25° C OCL (µH Min.) @ 100 KHz, 0.1 Vrms 2.0 Interwinding Capacitance (pF Ref.) @ 100 KHz, 0.1 Vrms 1.3 Leakage Inductance (µH Ref.) @ 100 KHz, 0.1 Vrms 0.08 0.01 DCR (Ω Max.) Impedance (Ω Min.) @ 1 GHz 140 Notes : 1. Lead Fin.

EPA3393_PCAELECTRONICS.pdf

This datasheet PDF includes multiple part numbers: EPA3393-LF, EPA3393. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

EPA3393-LF, EPA3393

Manufacturer:

PCA ELECTRONICS

File Size:

39.25 KB

Description:

Common mode choke.

Note:

This datasheet PDF includes multiple part numbers: EPA3393-LF, EPA3393.
Please refer to the document for exact specifications by model.
