EPA3393 Common Mode Choke

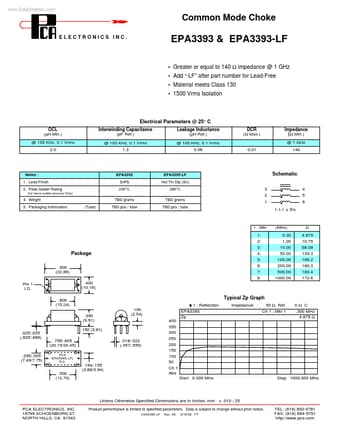

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC. EPA3393 & EPA3393-LF Greater or equal to 140 Ω impedance @ 1 GHz Add “-LF” after part number for Lead-Free Material meets Class 130 1500 Vrms Isolation Electrical Parameters @ 25° C OCL (µH Min.) @ 100 KHz, 0.1 Vrms 2.0 Interwinding Capacitance (pF Ref.) @ 100 KHz, 0.1 Vrms 1.3 Leakage Inductance (µH Ref.) @ 100 KHz, 0.1 Vrms 0.08 0.01 DCR (Ω Max.) Impedance (Ω Min.) @ 1 GHz 140 Notes : 1. Lead Fin.

EPA3393_PCAELECTRONICS.pdf

EPA3393 Datasheet Preview — Preview of EPA3393 PDF

Datasheet Details

Part number:

EPA3393

Manufacturer:

PCA ELECTRONICS

File Size:

39.25 KB

Description:

Common mode choke.
