EPA3507 Datasheet - PCA ELECTRONICS

EPA3507 Fast Logic TTL Compatible Active Delay Lines

14 Pin DIP and SMD 5 Tap Both Edges Controlled Fast Logic TTL Compatible Active Delay Lines Compatible with standard auto-insertable equipment and can be used in either infrared or vapor phase process. Input to Tap ± 5% or ± 2nS† Tap to Tap ± 7% or ± 2nS† Tap Total DIP Part Number SMD Part Number Input to Tap ± 5% or ± 2nS† Tap to Tap ± 7% or ± 2nS† Tap Total DIP Part Number 5, 10, 15, 20 6, 12, 18, 24 7, 14, 21, 28 8, 16, 24, 32 9, 18, 27, 36 10, 20, 30, 40 12, 24, 36, 48 15, 30, 4.

EPA3507-PCAELECTRONICS.pdf

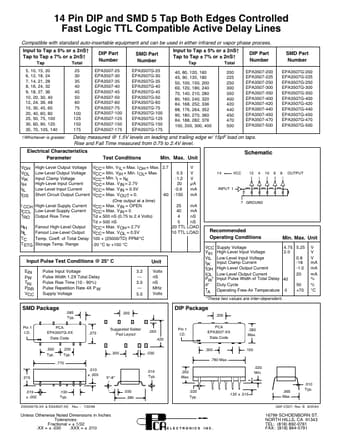

EPA3507 Datasheet Preview — Preview of EPA3507 PDF

Datasheet Details

Part number:

EPA3507

Manufacturer:

PCA ELECTRONICS

File Size:

35.84 KB

Description:

Fast logic ttl compatible active delay lines.
