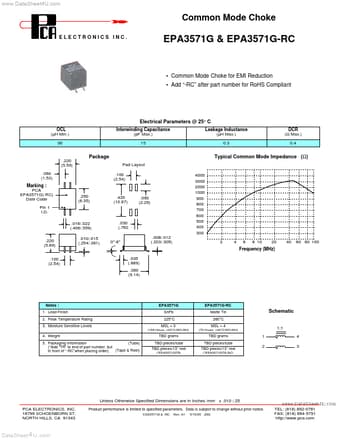

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC.
EPA3571G & EPA3571G-RC Common Mode Choke for EMI Reduction Add “-RC” after part number for RoHS Compliant Electrical Parameters @ 25° C OCL (µH Min.) 36 Interwinding Capacitance (pF Max.) 15 Leakage Inductance (µH Max.) 0.3 DCR (Ω Max.) 0.4 .220 (5.59) .060 (1.52) Marking : PCA EPA3571G)-RC) Date Code Pin 1 I.D.
Package Pad Layout .100 (2.54) 4000 3000 2000 1000 900 800 700 600 500 400 300 .008/.012 (.203/.305) Typ
