EPA3569S Common Mode Choke

EPA3569S Description

www.DataSheet4U.com Common Mode Choke ELECTRONICS INC.EPA3569S * Optimized for T1/E1 Applications * Common Mode Choke for EMI Redu.

EPA3569S Applications

* Common Mode Choke for EMI Reduction Electrical Parameters @ 25° C OCL (µH Min. ) 36 Interwinding Capacitance (pF Max. ) 15 Leakage Inductance (µH Max. ) 0.3 DCR (Ω Max. ) 0.4 Schematic 1:1 1 2 1:1 3 4 14 13 7 8 16 15 5 6 1:1 10 5 9 1:1 12 11 Impedance Graph (deg Ω ) 4000 3000 2000 1000 900

📥 Download Datasheet

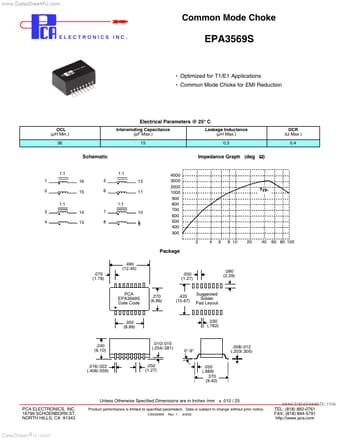

Preview of EPA3569S PDF

Datasheet Details

Part number
EPA3569S
Manufacturer
PCA ELECTRONICS
File Size
171.07 KB
Datasheet
EPA3569S_PCAELECTRONICS.pdf
Description
Common Mode Choke
