PTP10N80 - 800V N-Channel MOSFET

PIP

PTP10N80 Description

800V N-Channel MOSFET General .

PTP10N80 Features

* Proprietary New Planar Technology
* RDS(ON),typ. =1.0 Ω@VGS=10V
* Low Gate Charge Minimize Switching Loss

PTP10N80 Applications

* ATX Power
* LCD Panel Power Ordering Information Part Number Package PTP10N80 TO-220 PTA10N80 TO-220F Brand GDS GDS TO-220 TO-220F Package Not to Scale Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGSS ID ID @ Tc =100℃ IDM EAS dv/dt PD TL TPAK Para

📥 Download Datasheet

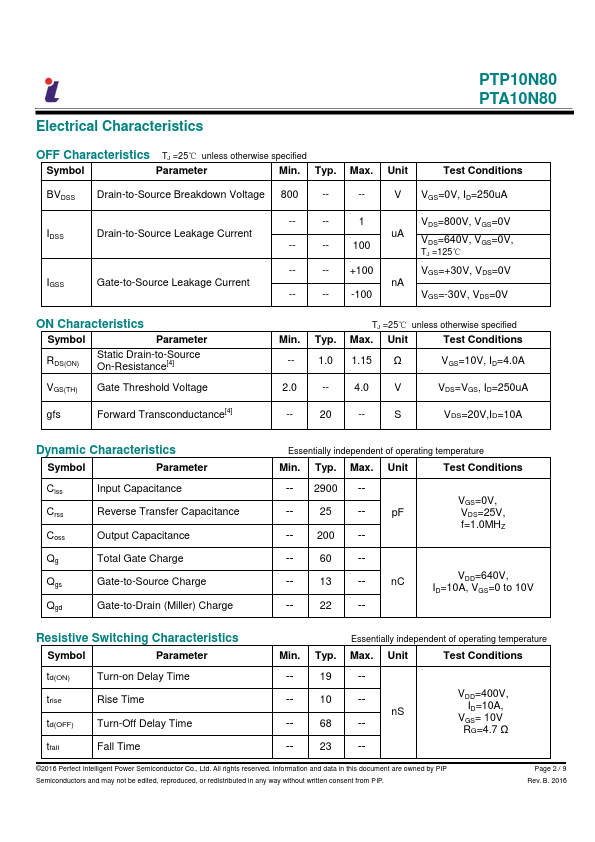

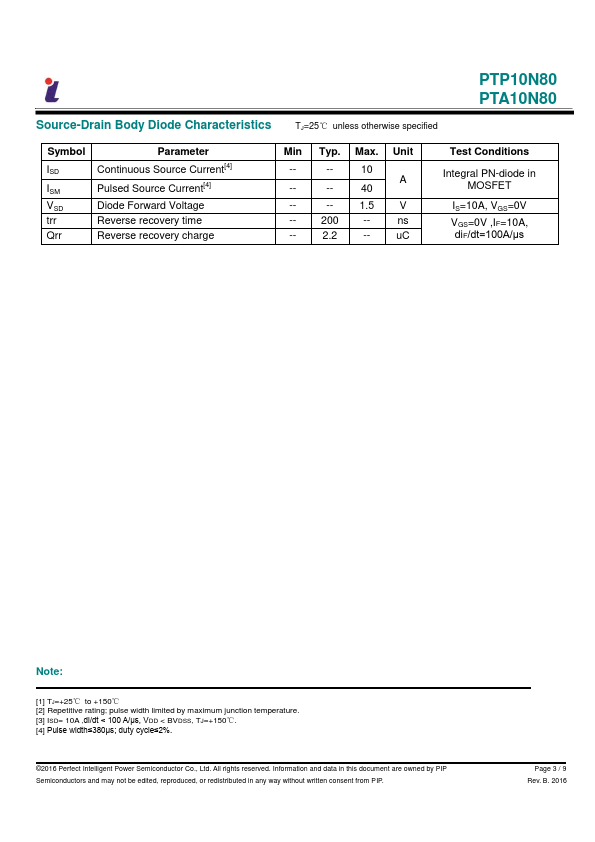

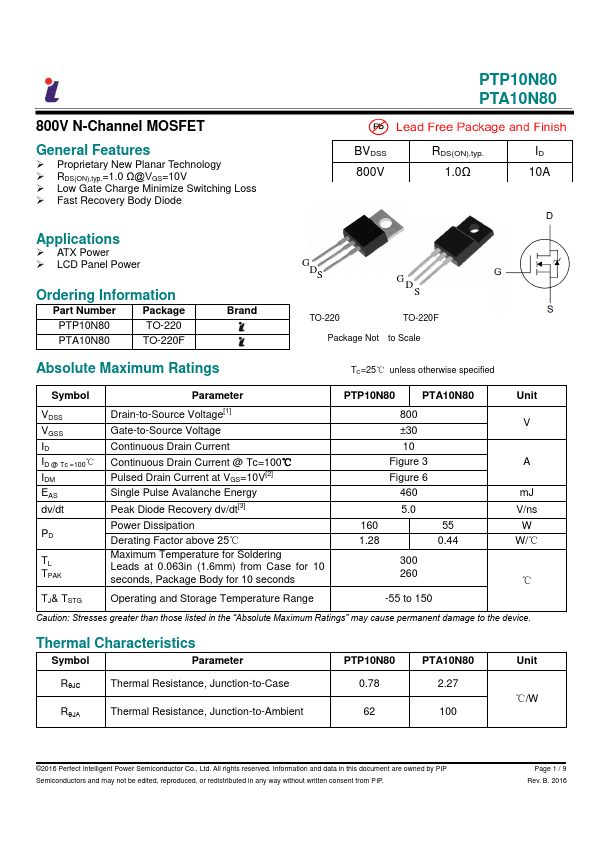

PTP10N80 Datasheet Preview — Preview of PTP10N80 PDF

Datasheet Details

Part number: PTP10N80
Manufacturer: PIP
File Size: 873.97 KB
Datasheet: PTP10N80-PIP.pdf
Description: 800V N-Channel MOSFET
