PTP40N30 - 300V N-Channel MOSFET

PIP

PTP40N30 Description

300V N-Channel MOSFET General .

PTP40N30 Features

* Proprietary New Planar Technology
* RDS(ON),typ. =0.12 Ω@VGS=10V
* Low Gate Charge Minimize Switching Loss

PTP40N30 Applications

* DC-DC Converters
* DC-AC Inverters for UPS
* SMPS and Motor controls Ordering Information Part Number Package PTP40N30 TO-220 Brand GDS TO-220 Package No to Scale Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol Parameter PTP40N30 Unit VDSS VGSS ID ID @ T

📥 Download Datasheet

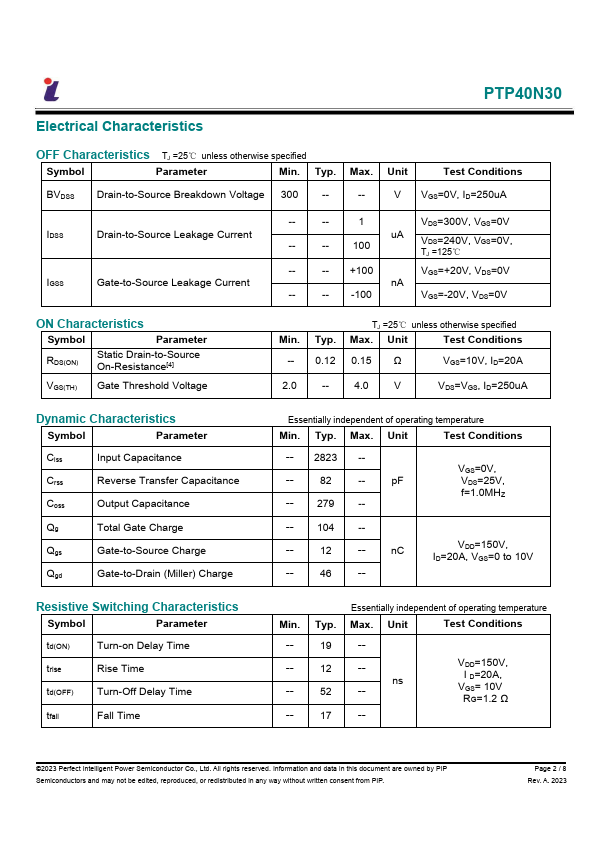

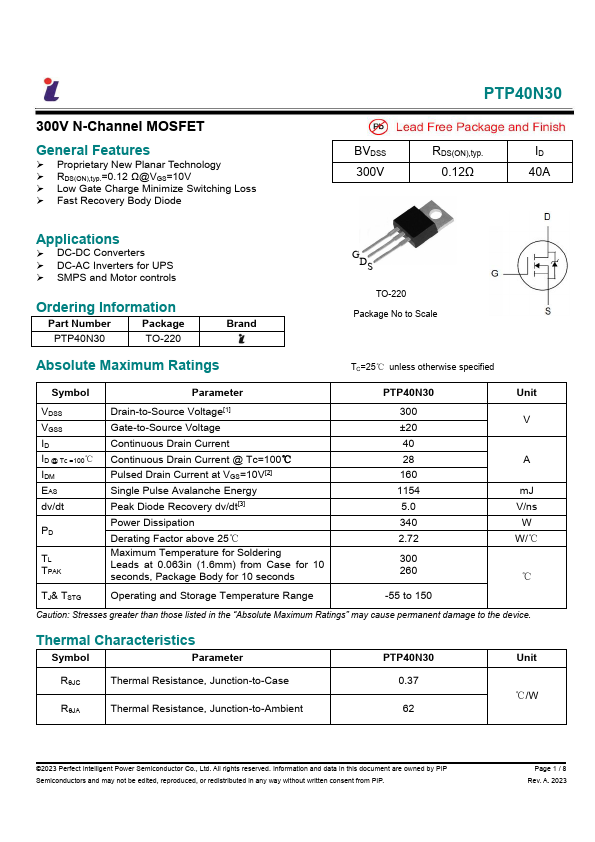

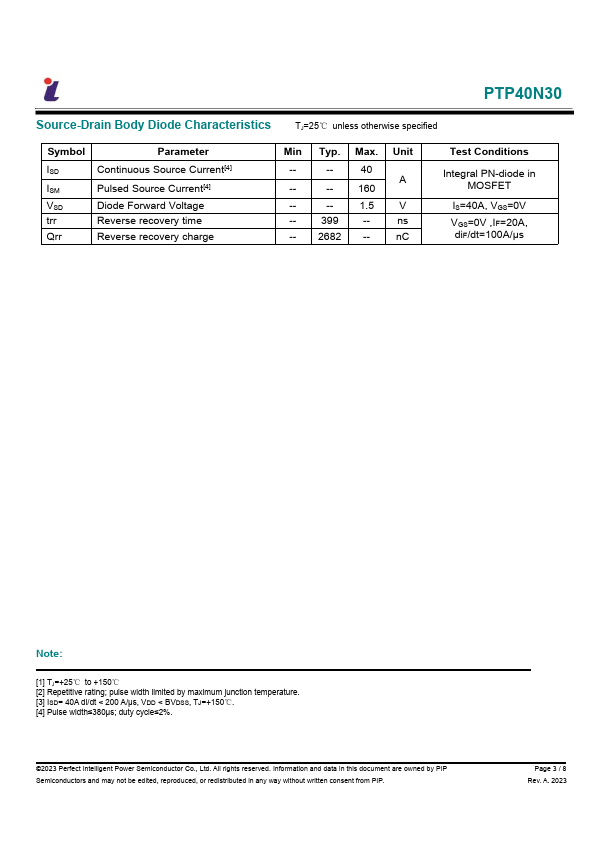

PTP40N30 Datasheet Preview — Preview of PTP40N30 PDF

Datasheet Details

Part number: PTP40N30
Manufacturer: PIP
File Size: 819.98 KB
Datasheet: PTP40N30-PIP.pdf
Description: 300V N-Channel MOSFET
