2SC5295 - NPN TRANSISTOR

Datasheet Summary

Features

High transition frequency fT.
Low collector output capacitance Cob.
SS-mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing. 0.2+0.1.
0.05 3 0.15+0.1.
0.05 0.8±0.1 1.6±0.15 1° 1 (0.5) (0.5) 1.0±0.1 1.6±0.1 5° 2 (0.4) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Sy.

Datasheet Details

Part number	2SC5295
Manufacturer	Panasonic Semiconductor
File Size	44.00 KB
Description	NPN TRANSISTOR
Datasheet	2SC5295 Datasheet
Additional preview pages of the 2SC5295 datasheet.

📁 Similar Datasheet

2SC5295G - Silicon NPN Transistor (Panasonic)

2SC5295J - Silicon NPN Transistor (Panasonic)

2SC5291 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5294A - Silicon NPN Transistor (Panasonic)

2SC5296 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5296 - Silicon NPN Power Transistors (Inchange Semiconductor)

2SC5297 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5297 - NPN Transistor (INCHANGE)

2SC5297 - SILICON POWER TRANSISTOR (SavantIC)

2SC5298 - NPN TRANSISTOR (Sanyo Semicon Device)

Full PDF Text Transcription

Click to expand full text

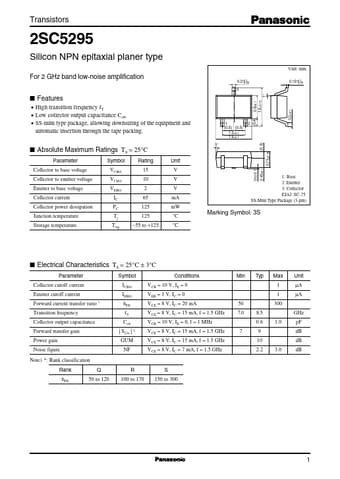

Transistors 2SC5295 Silicon NPN epitaxial planer type Unit: mm For 2 GHz band low-noise amplification I Features • High transition frequency fT • Low collector output capacitance Cob • SS-mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing. 0.2+0.1 –0.05 3 0.15+0.1 –0.05 0.8±0.1 1.6±0.15 1° 1 (0.5) (0.5) 1.0±0.1 1.6±0.1 5° 2 (0.4) Parameter Collector to base voltage Collector to emitter voltage Emitter to base voltage Collector current Collector power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PC Tj Tstg Rating 15 10 2 65 125 125 −55 to +125 Unit 0 to 0.1 0.45±0.
