2SC5295J - Silicon NPN Transistor

Datasheet Summary

Features

3 (0.375) 0.85.
+00..0035 1.60±0.05 5˚.
High transition frequency fT.
Low collector output capacitance (Common base, input open cir- 12 (0.80) cuited) Cob.
SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing 0.27±0.02 (0.50)(0.50) 5˚ /.
Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit e pe) Collector-base voltage (Emitter open) VCBO 15 0 to 0.02 0.70.
+00..0035 V.

Datasheet Details

Part number	2SC5295J
Manufacturer	Panasonic
File Size	214.63 KB
Description	Silicon NPN Transistor
Datasheet	2SC5295J Datasheet
Additional preview pages of the 2SC5295J datasheet.

📁 Similar Datasheet

2SC5295 - NPN TRANSISTOR (Panasonic Semiconductor)

2SC5291 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5294 - Silicon NPN triple diffusion mesa type Power Transistor (Panasonic Semiconductor)

2SC5296 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5296 - Silicon NPN Power Transistors (Inchange Semiconductor)

2SC5297 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5297 - NPN Transistor (INCHANGE)

2SC5297 - SILICON POWER TRANSISTOR (SavantIC)

2SC5298 - NPN TRANSISTOR (Sanyo Semicon Device)

2SC5299 - NPN Transistor (INCHANGE)

Full PDF Text Transcription

Click to expand full text

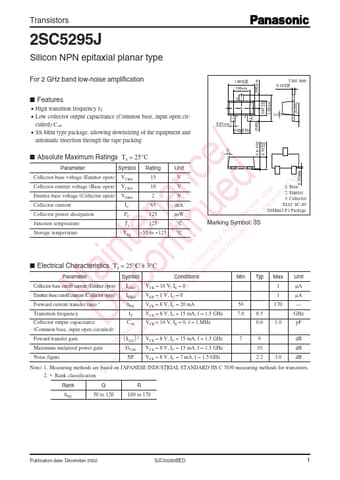

Transistors 2SC5295J Silicon NPN epitaxial planar type 0.80±0.05 For 2 GHz band low-noise amplification 1.60+–00..0035 1.00±0.05 Unit: mm 0.12+–00..0013 ■ Features 3 (0.375) 0.85–+00..0035 1.60±0.05 5˚ • High transition frequency fT • Low collector output capacitance (Common base, input open cir- 12 (0.80) cuited) Cob • SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing 0.27±0.02 (0.50)(0.50) 5˚ / ■ Absolute Maximum Ratings Ta = 25°C Parameter Symbol Rating Unit e pe) Collector-base voltage (Emitter open) VCBO 15 0 to 0.02 0.70–+00..0035 V 0.10 max. c e.
