2SC5297 - NPN TRANSISTOR

Datasheet Summary

Features

  • High speed : tf=100ns typ.
  • High breakdown voltage : VCBO=1500V.
  • High reliability (Adoption of HVP process).
  • Adoption of MBIT process. Package Dimensions unit:mm 2039D [2SC5297] 3.4 16.0 5.0 8.0 5.6 3.1 21.0 22.0 4.0 2.8 2.0 20.4 1.0 2.0 0.6 1 2 3 3.5 Specifications Absolute Maximum Ratings at Ta = 25˚C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Juncti.

📥 Download Datasheet

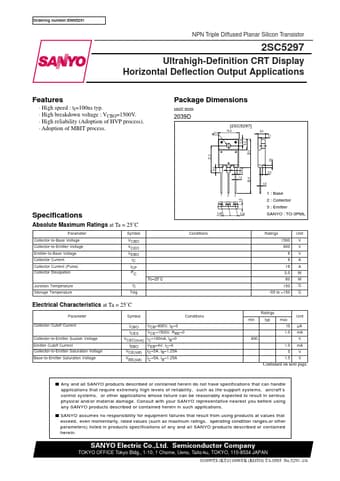

Datasheet preview – 2SC5297
