2SC5295G - Silicon NPN Transistor

Product Overview

Panasonic

📥 Download Datasheet

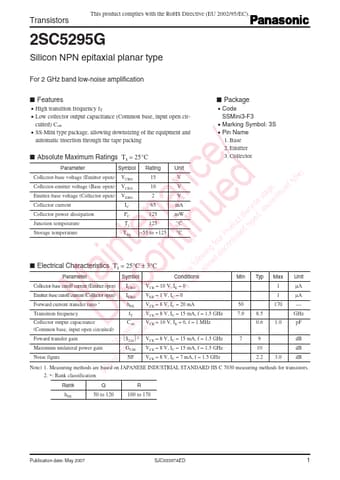

2SC5295G Silicon NPN Transistor by Panasonic - Datasheet Preview — Datasheet preview – 2SC5295G

Datasheet Details

Part number	2SC5295G
Manufacturer	Panasonic
File Size	254.93 KB
Description	Silicon NPN Transistor
Datasheet	2SC5295G Datasheet
Additional preview pages of the 2SC5295G datasheet.

Product details

Features

s.
Package.
High transition frequency fT.
Low collector output capacitance (Common base, input open cir-.
Code SSMini3-F3 cuited) Cob.
SS-Mini type package, allowing downsizing of the equipment and automatic insertion through the tape packing /.
Absolute Maximum Ratings Ta = 25°C.
Marking Symbol: 3S.
Pin Name 1. Base 2. Emitter 3. Collector Parameter Symbol Rating Unit e pe) Collector-base voltage (Emitter open) VCBO 15 V.
