2SC5298 - NPN TRANSISTOR

Datasheet Summary

Features

  • High Speed : tf=100ns typ.
  • High Breakdown voltage : VCBO=1500V.
  • High reliability (Adoption of HVP process).
  • Adoption of MBIT process.
  • On-chip damper diode. Package Dimensions unit: mm 2039C-TO3PML [2SC5298] Specifications Absolute Maximum Ratings at Ta=25°C Parameter Collector-to-Base Voltage Collector-to-Emitter Voltage Emitter-to-Base Voltage Collector Current Collector Current (Pulse) Collector Dissipation Junction Temperature Storage Temper.

📥 Download Datasheet

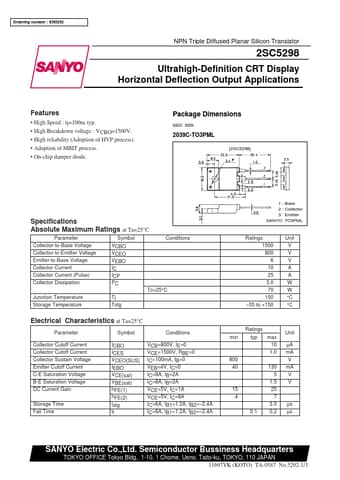

Datasheet preview – 2SC5298

Datasheet Details

Part number 2SC5298
Manufacturer Sanyo Semicon Device
File Size 133.62 KB
Description NPN TRANSISTOR
Datasheet download datasheet 2SC5298 Datasheet
