* q q q 10.5min. High foward current transfer ratio hFE Satisfactory linearity of foward current transfer ratio hFE N type package enabling direct soldering of the radiating fin to the printed circuit board, etc. of small electronic equipment. (TC=25˚C) Ratings 80 100 60 80 6 4 2 0.5 25 1.3 150
2SD1775
Panasonic Semiconductor
57.25 KB
Silicon npn transistor.
Power Transistors

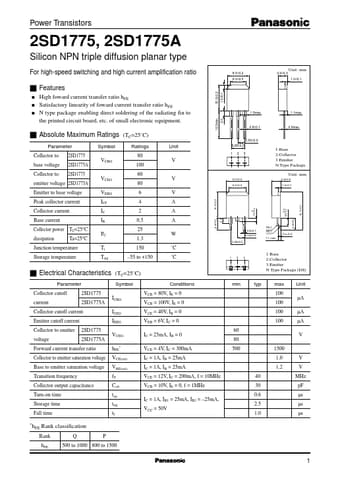

2SD1775, 2SD1775A
Silicon NPN triple diffusion planar type
For high-speed switching and high current amplification ratio
10.0±0.3 1.
