PE4230, SPDT High Power UltraCMOS RF Switch

www.DataSheet4U.com Product Specification PE4230 Product .
The PE4230 UltraCMOS™ RF Switch is designed to cover a broad range of applications from DC through 3000 MHz.

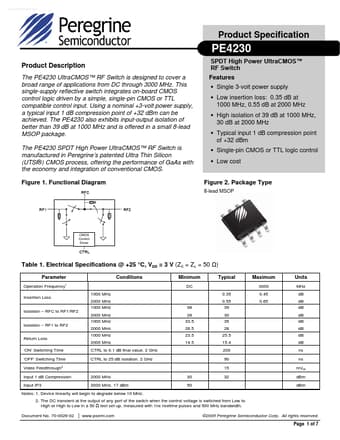

datasheet Preview Page 1 from Datasheet4u.com

PE4230_PeregrineSemiconductor.pdf

PE4230 Datasheet Preview — Preview of PE4230 PDF

Datasheet Details

Part number:

PE4230

Manufacturer:

Peregrine Semiconductor

File Size:

284.14 KB

Description:

SPDT High Power UltraCMOS RF Switch

Features

* Single 3-volt power supply
* Low insertion loss: 0.35 dB at 1000 MHz, 0.55 dB at 2000 MHz
* High isolation of 39 dB at 1000 MHz, 30 dB at 2000 MHz
* Typical input 1 dB compression point of +32 dBm
* Single-pin CMOS or TTL logic control
* Low cost

Applications

* from DC through 3000 MHz. This single-supply reflective switch integrates on-board CMOS control logic driven by a simple, single-pin CMOS or TTL compatible control input. Using a nominal +3-volt power supply, a typical input 1 dB compression point of +32 dBm can be achieved. The PE4230 also exhibits
