PE423422 - SPDT RF Switch

Product Overview

Peregrine Semiconductor

📥 Download Datasheet

PE423422 SPDT RF Switch by Peregrine Semiconductor - Datasheet Preview — Datasheet preview – PE423422

Datasheet Details

Part number	PE423422
Manufacturer	Peregrine Semiconductor
File Size	366.68 KB
Description	SPDT RF Switch
Datasheet	PE423422 Datasheet

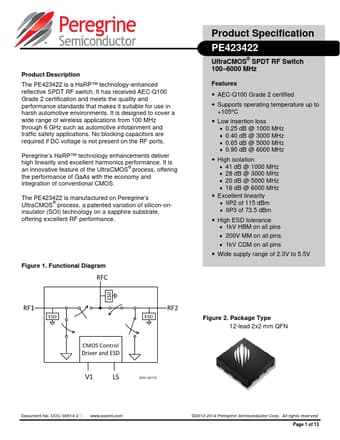

Additional preview pages of the PE423422 datasheet.

Product details

Description

The PE423422 is a HaRP™ technology-enhanced reflective SPDT RF switch.

Features

 AEC-Q100 Grade 2 certified.
 Supports operating temperature up to +105°C.
 Low insertion loss.
 0.25 dB @ 1000 MHz.
 0.40 dB @ 3000 MHz.
 0.65 dB @ 5000 MHz.
 0.90 dB @ 6000 MHz.
 High isolation.
 41 dB @ 1000 MHz.
 28 dB @ 3000 MHz.
 20 dB @ 5000 MHz.
 16 dB @ 6000 MHz.
 Excellent linearity.
 IIP2 of 115 dBm.
 IIP3 of 73.5 dBm.
 High ESD tolerance.
 1kV HBM on all pins.
 200V MM on all pins.
 1kV CD.
