PE4235 - SPDT UltraCMOS RF Switch DC

Product Overview

Peregrine Semiconductor

📥 Download Datasheet

PE4235 SPDT UltraCMOS RF Switch DC by Peregrine Semiconductor - Datasheet Preview — Datasheet preview – PE4235

Datasheet Details

Part number	PE4235
Manufacturer	Peregrine Semiconductor
File Size	313.51 KB
Description	SPDT UltraCMOS RF Switch DC
Datasheet	PE4235 Datasheet

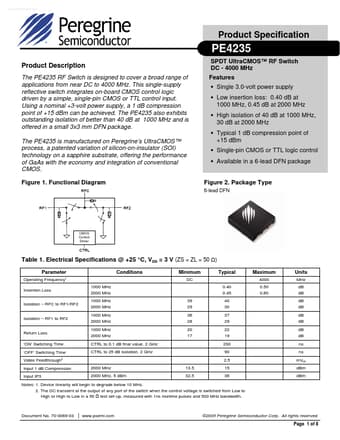

Additional preview pages of the PE4235 datasheet.

Product details

Description

The PE4235 RF Switch is designed to cover a broad range of applications from near DC to 4000 MHz.

Features

Single 3.0-volt power supply.
Low insertion loss: 0.40 dB at 1000 MHz, 0.45 dB at 2000 MHz.
High isolation of 40 dB at 1000 MHz, 30 dB at 2000 MHz.
Typical 1 dB compression point of +15 dBm.
Single-pin CMOS or TTL logic control.
Available in a 6-lead DFN package Figure 2. Package Type 6-lead DFN RF1 RF2 CMOS Control Driver CTRL Table 1. Electrical Specifications @ +25 °C, VDD = 3 V (ZS = ZL = 50 Ω) Parameter Operating Frequency1 Ins.
