PE42359 SPDT UltraCMOS RF Switch

📥 Download Datasheet  Datasheet Preview Page 1

Description

Product .
The PE42359 UltraCMOS® RF switch is designed to cover a broad range of applications from 10 MHz through 3 GHz.

📥 Download Datasheet

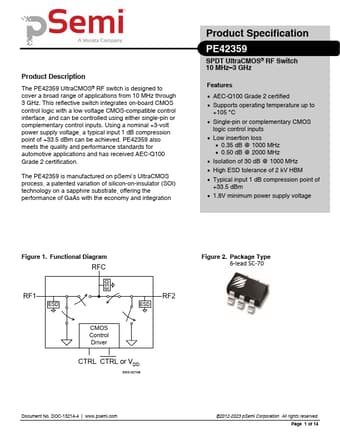

Preview of PE42359 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE42359
Manufacturer
Peregrine Semiconductor
File Size
740.58 KB
Datasheet
PE42359-PeregrineSemiconductor.pdf
Description
SPDT UltraCMOS RF Switch

Features

*  AEC-Q100 Grade 2 certified
*  Supports operating temperature up to +105 °C
*  Single-pin or complementary CMOS logic control inputs
*  Low insertion loss
*  0.35 dB @ 1000 MHz
*  0.50 dB @ 2000 MHz
*  Isolation of 30 dB @ 1000 MHz
*  High ESD tolerance of 2 kV HBM

Applications

* from 10 MHz through 3 GHz. This reflective switch integrates on-board CMOS control logic with a low voltage CMOS-compatible control interface, and can be controlled using either single-pin or complementary control inputs. Using a nominal +3-volt power supply voltage, a typical input 1 dB compression
