PE4232 SPST CATV UltraCMOS Switch

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.DataSheet4U.com Product Specification PE4232 Product .
The PE4232 is a is a high-isolation Switch designed for CATV applications, covering a broad frequency range from near DC up to 1300 MHz.

📥 Download Datasheet

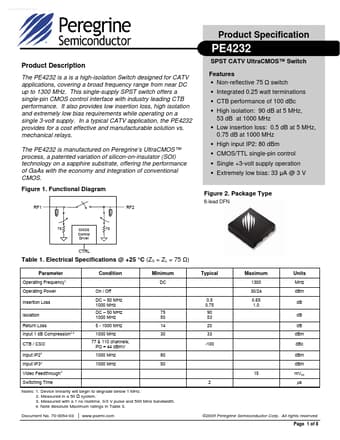

Preview of PE4232 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
PE4232
Manufacturer
Peregrine Semiconductor
File Size
290.56 KB
Datasheet
PE4232_PeregrineSemiconductor.pdf
Description
SPST CATV UltraCMOS Switch

Features

* Non-reflective 75 Ω switch
* Integrated 0.25 watt terminations
* CTB performance of 100 dBc
* High isolation: 90 dB at 5 MHz, 53 dB at 1000 MHz
* Low insertion loss: 0.5 dB at 5 MHz, 0.75 dB at 1000 MHz
* High input IP2: 80 dBm
* CMOS/TTL s

Applications

* covering a broad frequency range from near DC up to 1300 MHz. This single-supply SPST switch offers a single-pin CMOS control interface with industry leading CTB performance. It also provides low insertion loss, high isolation and extremely low bias requirements while operating on a single 3-volt s
