PDC4964Z

N-Channel MOSFET

Potens semiconductor

PDC4964Z Features

* 40V, 54A, RDS(ON) =6.5mΩ@VGS = 10V

* Improved dv/dt capability

* Fast switching

* Green Device Available Applications

* MB / VGA / Vcore

* POL Applications

* SMPS 2nd SR Absolute Maximum Ratings Tc=25℃ unless otherwise noted Symbol VDS VGS ID IDM EAS IAS PD TSTG TJ

PDC4964Z General Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Thes.

PDC4964Z Datasheet (762.89 KB)

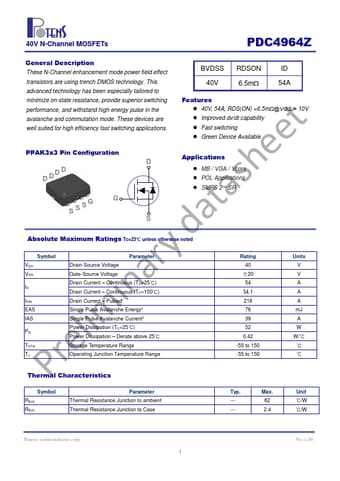

PDC4964Z Datasheet Preview — Preview of PDC4964Z PDF

Datasheet Details

Part number:

PDC4964Z

Manufacturer:

Potens semiconductor

File Size:

762.89 KB

Description:

N-channel mosfet.
