PDS3808

N-Channel MOSFETs

Potens semiconductor

PDS3808 Features

* 30V,9A, RDS(ON) =11mΩ@VGS = 10V

* Improved dv/dt capability

* Fast switching

* Green Device Available Dual SOP8 Pin Configuration D2 D2 D1 D1 D1 G1 G2 G1S2 S1 S1 G2 Applications D2

* MB / VGA / Vcore

* POL Applications

* SMPS 2nd SR S2 Absolute Maximum Ratings

PDS3808 General Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Thes.

PDS3808 Datasheet (707.71 KB)

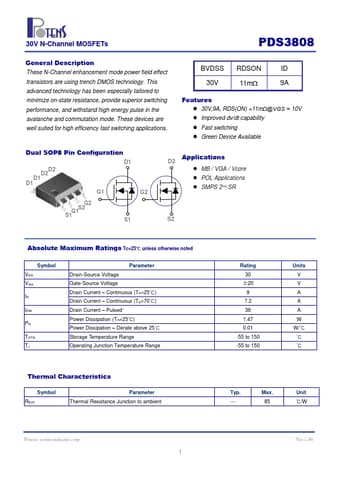

PDS3808 Datasheet Preview — Preview of PDS3808 PDF

Datasheet Details

Part number:

PDS3808

Manufacturer:

Potens semiconductor

File Size:

707.71 KB

Description:

N-channel mosfets.
