PDS3810

Dual N-Channel MOSFETs

Potens semiconductor

PDS3810 Features

* 30V,10A, RDS(ON) =13mΩ @VGS = 10V

* Improved dv/dt capability

* Fast switching

* 100% EAS Guaranteed

* Green Device Available Applications

* MB / VGA / Vcore

* POL Applications

* SMPS 2nd SR Absolute Maximum Ratings Tc=25℃ unless otherwise noted Symbol VDS VGS ID

PDS3810 General Description

These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. Thes.

PDS3810 Datasheet (748.46 KB)

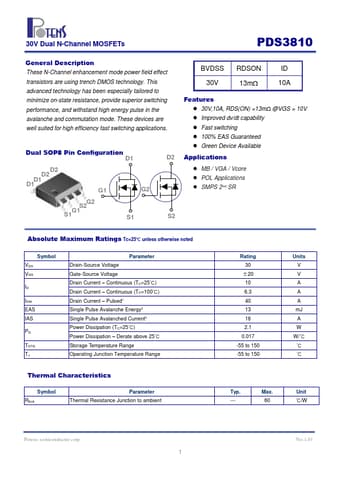

PDS3810 Datasheet Preview — Preview of PDS3810 PDF

Datasheet Details

Part number:

PDS3810

Manufacturer:

Potens semiconductor

File Size:

748.46 KB

Description:

Dual n-channel mosfets.
