PDS3812 Datasheet, Mosfets, Potens semiconductor

PDS3812 Features

  • Mosfets
  • 30V,7.5A, RDS(ON) =20mΩ @VGS = 10V
  • Improved dv/dt capability
  • Fast switching
  • 100% EAS Guaranteed
  • Green Device Available Applications

PDF File Details

Part number:

PDS3812

Manufacturer:

Potens semiconductor

File Size:

393.09kb

Download:

📄 Datasheet

Description:

Dual n-channel mosfets. These N-Channel enhancement mode power field effect transistors are using trench DMOS technology. This advanced technology has been e

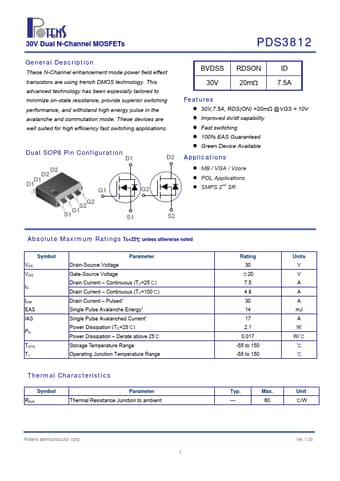

Datasheet Preview: PDS3812 📥 Download PDF (393.09kb)
Page 2 of PDS3812 Page 3 of PDS3812

PDS3812 Application

  • Applications Dual SOP8 Pin Configuration D1 D2 D2 D1 D1 G1 G2 G2 S2 S1G1 G S1 D2 S2 BVDSS 30V RDSON 20m ID 7.5A Features
  • 30V,7
