PT3651 - General purpose Hall-effect Latch

PT3651 Description

Hall IC PT3651 General purpose Hall-effect Latch Applications DC brushless motor VCD/DVD loader, CD/DVD-Rom Cover detector Speed Measurement Home app.

PT3651 Features

* 2.5V to 18V operation Built-in dynamic offset cancellation Small size High balance and low thermal drift magnetic sensing ESD protected to 8KV Package Type P/N: PT3651-D SIP3 651 xxx Part Number: 651 Date Code: x(Year) xx(week) Order information PT3651-D /PKG:SIP3 123 VDD GND OUT 1. VDD/DC power

📥 Download Datasheet

Preview of PT3651 PDF

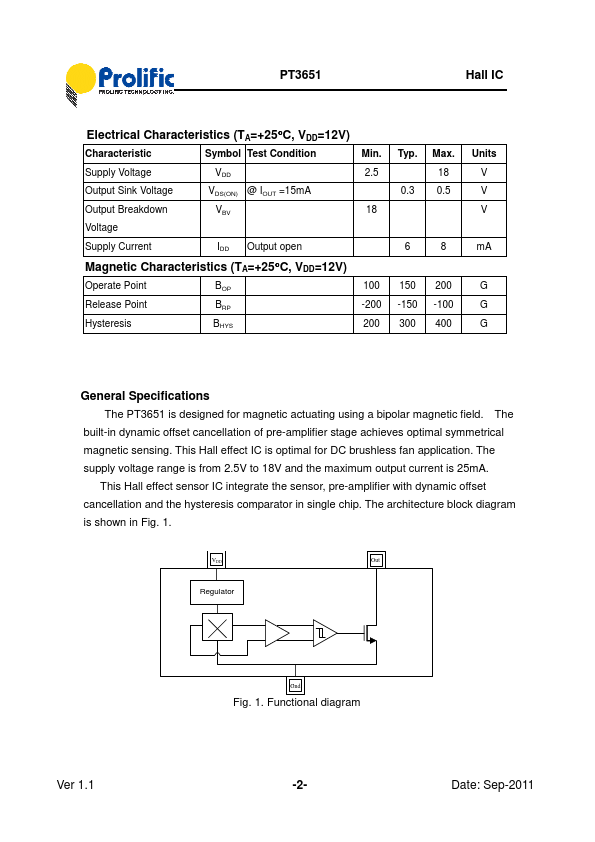

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PT3651
Manufacturer
Prolific
File Size
0.97 MB
Datasheet
PT3651-Prolific.pdf
Description
General purpose Hall-effect Latch
