QPA1314T - 55 Watt GaN Power Amplifier

Qorvo

QPA1314T Datasheet Preview — Preview of QPA1314T PDF

Datasheet Details

Part number	QPA1314T
Manufacturer	Qorvo
File Size	1.79 MB
Description	55 Watt GaN Power Amplifier
Datasheet	QPA1314T-Qorvo.pdf

QPA1314T Product details

Description

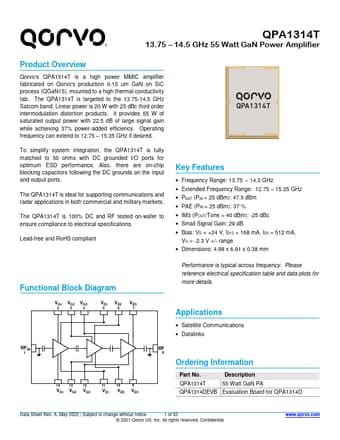

QPA1314T 55 Watt GaN PA QPA1314DEVB Evaluation Board for QPA1314D Data Sheet Rev.A, May 2022 | Subject to change without notice 1 of 32 © 2021 Qorvo US, Inc.All rights reserved.Confidential www.qorvo.com QPA1314T 13.75 14.5 GHz 55 Watt GaN Power Amplifier Absolute Maximum Ratings Recommended Operating Conditions Parameter Drain Voltage (VD) Gate Voltage Range (VG) Drain Current (ID1) Drain Current (ID2) Drain Current (ID3) Drain Current (ID_TOTAL) Gate Current (IG) Power

Features

Frequency Range: 13.75 .
14.5 GHz.
Extended Frequency Range: 12.75.
15.35 GHz.
PSAT (PIN = 25 dBm): 47.5 dBm.
PAE (PIN = 25 dBm): 37 %.
IM3 (POUT/Tone = 40 dBm): -25 dBc.
Small Signal Gain: 29 dB.
Bias: VD = +24 V, ID12 = 168 mA, ID3 = 512 mA, VG = -2.3 V +/- range.
Dimensions: 4.98 x 6.91 x 0.38 mm Functional Block Diagram Performance is typical across frequency. Please reference electrical specificati.
