QPA3340

CATV Power Doubler Hybrid 1003MHz 23dB

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Qorvo QPA3340 1GHZ 23DB POWER DOUBLER HYBRID DigiKey 0 50 units
$75.88

QPA3340 Datasheet (319.52 KB)

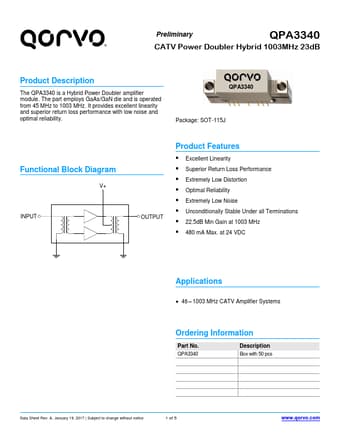

Preview of QPA3340 PDF Datasheet

Datasheet Details

Part number:

QPA3340

Manufacturer:

Qorvo

File Size:

319.52 KB

Description:

Catv power doubler hybrid 1003mhz 23db

QPA3340 Features

* Excellent Linearity

* Superior Return Loss Performance

* Extremely Low Distortion

* Optimal Reliability

* Extremely Low Noise

* Unconditionally Stable Under all Terminations

* 22.5dB Min Gain at 1003 MHz

* 480 mA Max. at 24 VDC Applications

* 45 

*  1003

QPA3340 General Description

The QPA3340 is a Hybrid Power Doubler amplifier module. The part employs GaAs/GaN die and is operated from 45 MHz to 1003 MHz. It provides excellent linearity and superior return loss performance with low noise and optimal reliability. QPA3340 Package: SOT-115J Functional Block Diagram V+ INPUT O.
