1N4946, 1N4942 - FAST RECOVERY RECTIFIER

1N4946 Description

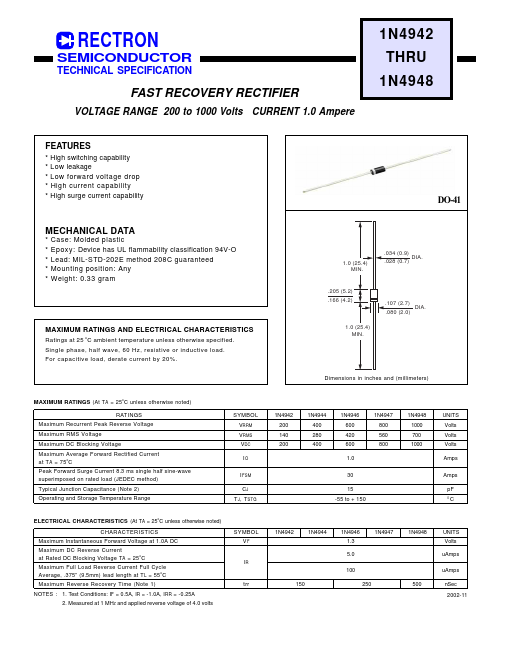

RECTRON SEMICONDUCTOR TECHNICAL SPECIFICATION FAST RECOVERY RECTIFIER VOLTAGE RANGE 200 to 1000 Volts CURRENT 1.0 Ampere 1N4942 THRU 1N4948 .

1N4946 Features

* High switching capability
* Low leakage
* Low forward voltage drop
* High current capability
* High surge current capability DO-41 MECHANICAL DATA
* Case: Molded plastic
* Epoxy: Device has UL flammability classification 94V-O
* Lead: MIL-STD-202E method 208C guar

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4946, 1N4942. Please refer to the document for exact specifications by model.

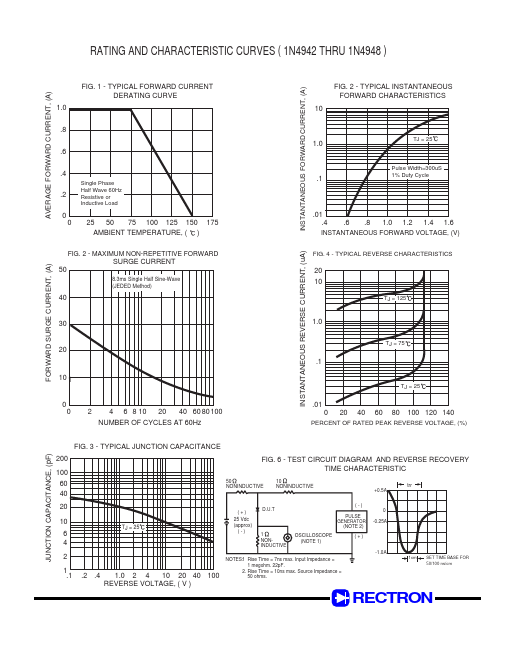

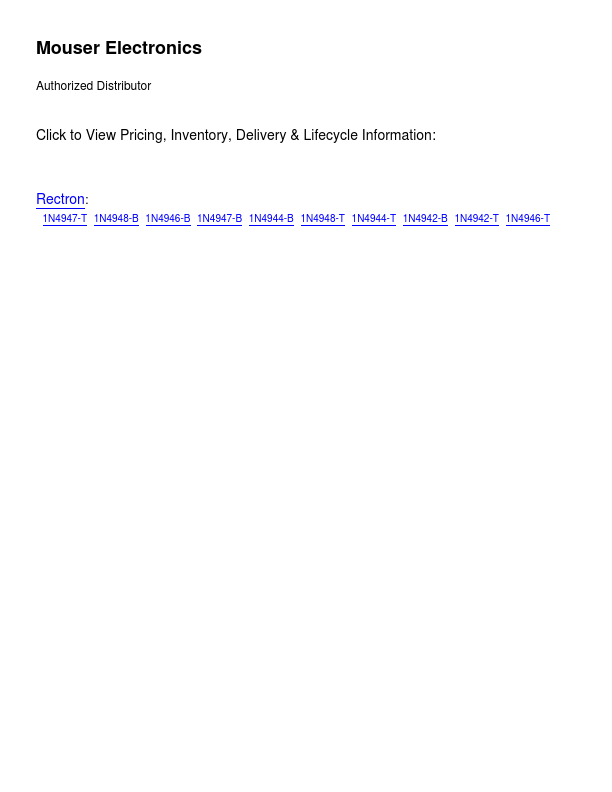

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
1N4946, 1N4942
Manufacturer
Rectron
File Size
28.93 KB
Datasheet
1N4942-Rectron.pdf
Description
FAST RECOVERY RECTIFIER
Note
This datasheet PDF includes multiple part numbers: 1N4946, 1N4942.
Please refer to the document for exact specifications by model.
