H5N2515P

Silicon N Channel MOS FET High Speed Power Switching

H5N2515P Datasheet (111.61 KB)

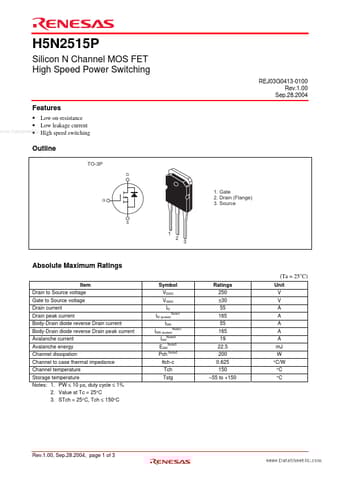

Preview of H5N2515P PDF Datasheet

Datasheet Details

Part number:

H5N2515P

Manufacturer:

Renesas ↗ Technology

File Size:

111.61 KB

Description:

Silicon n channel mos fet high speed power switching

H5N2515P Features

* Low on-resistance

* Low leakage current www.DataSheet4U.com

* High speed switching Outline TO-3P D G 1. Gate 2. Drain (Flange) 3. Source S 1 2 3 Absolute Maximum Ratings (Ta = 25°C) Item Drain to Source voltage Gate to Source voltage Drain current Drain peak current
