H7N0308LD Datasheet (137.34 KB)
H7N0308LD
Renesas ↗ Technology
137.34 KB
Silicon n-channel mosfet.

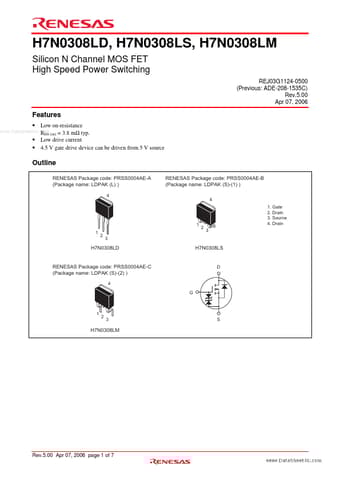

H7N0308LD, H7N0308LS, H7N0308LM
Silicon N Channel MOS FET High Speed Power Switching
REJ03G1124-0500 (Previous: ADE-208-1535C) Rev.5.00 Apr 07, 2006
.
* www.DataSheet4U.com R
* Low on-resistance DS (on) = 3.8 mΩ typ.
* Low drive current
* 4.5 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004AE-A (Package name: LDPAK (L) ) 4 4 1. Gate 2. Drain 3. Source 4. Drain RENESAS Package code: P
