H7N0307LD Datasheet (87.60 KB)
H7N0307LD
87.60 KB
Silicon n-channel mosfet.

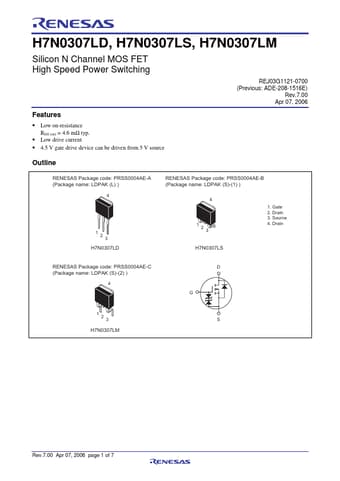

H7N0307LD, H7N0307LS, H7N0307LM
Silicon N Channel MOS FET High Speed Power Switching
REJ03G1121-0700 (Previous: ADE-208-1516E)
Rev.7.00 Apr 07, 2006.
* Low on-resistance RDS (on) = 4.6 mΩ typ.
* Low drive current
* 4.5 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004AE-A (Package name: LDPAK (L) ) 4 123 H7N0307LD RENESAS Package code: PRSS0004AE-B (Package name: LDPAK (S)-(1) ) 4
