H7N0308CF

Silicon N-Channel MOSFET

H7N0308CF Features

* Low on-resistance RDS (on) = 3.8 mΩ typ.

* Low drive current

* 4.5 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0003AE-A (Package name: TO-220C

* FM) D G 123 S REJ03G1123-0300 (Previous: ADE-208-1570A) Rev.3.00 Sep 07, 2005 1

H7N0308CF Datasheet (53.58 KB)

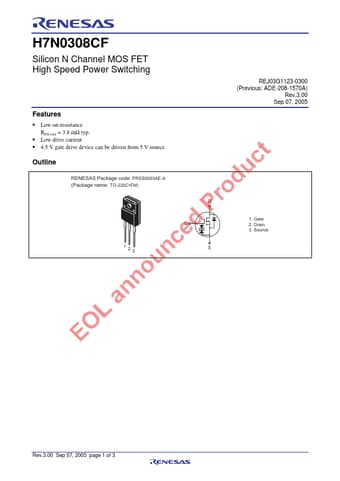

Preview of H7N0308CF PDF

Datasheet Details

Part number:

H7N0308CF

Manufacturer:

Renesas ↗

File Size:

53.58 KB

Description:

Silicon n-channel mosfet.
