H7N0307LM

Silicon N-Channel MOSFET

Renesas

H7N0307LM Features

* Low on-resistance RDS (on) = 4.6 mΩ typ.

* Low drive current

* 4.5 V gate drive device can be driven from 5 V source Outline RENESAS Package code: PRSS0004AE-A (Package name: LDPAK (L) ) 4 123 H7N0307LD RENESAS Package code: PRSS0004AE-B (Package name: LDPAK (S)-(1) ) 4

H7N0307LM Datasheet (87.60 KB)

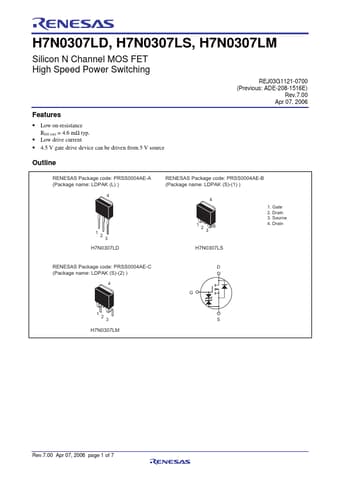

H7N0307LM Datasheet Preview — Preview of H7N0307LM PDF

Datasheet Details

Part number:

H7N0307LM

Manufacturer:

Renesas ↗

File Size:

87.60 KB

Description:

Silicon n-channel mosfet.
H7N0307LD, H7N0307LS, H7N0307LM Silicon N Channel MOS FET High Speed Power Switching REJ03G1121-0700 (Previous: ADE-208-1516E) Rev.7.00 Apr 07, 2006.
