HD74ACT107

Dual JK Flip-Flop

HD74ACT107 Features

* Outputs Source/Sink 24 mA

* HD74ACT107 has TTL-Compatible Inputs

* Ordering Information: Ex. HD74AC107 Part Name Package Type Package Code Package Abbreviation Taping Abbreviation (Quantity) HD74AC107FPEL SOP-14 pin (JEITA) FP-14DAV FP EL (2,000 pcs/reel) HD74AC107RP

HD74ACT107 General Description

The HD74AC107/HD74ACT107 dual JK master/slave flip-flops have a separate clock for each flip-flop. Inputs to the master section are controlled by the clock pulse. The clock pulse also regulates the state of the coupling transistors which connect the master and slave sections. The sequence of operati.

HD74ACT107 Datasheet (204.11 KB)

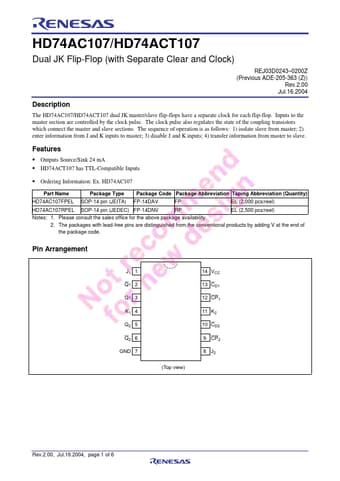

Preview of HD74ACT107 PDF

Datasheet Details

Part number:

HD74ACT107

Manufacturer:

Renesas ↗

File Size:

204.11 KB

Description:

Dual jk flip-flop.
HD74AC107/HD74ACT107 Dual JK Flip-Flop (with Separate Clear and Clock) REJ03D0243

*0200Z (Previous ADE-205-363 (Z)) Rev.2.00 Jul.16.2004 Descr.
