ICS542

CLOCK DIVIDER

ICS542 Features

* 8-pin SOIC package, Pb free

* Available in RoHS compliant package

* IDT’s lowest cost clock divider

* Low skew (500 ps) outputs. One is /2 of the other

* Easy to use with other generators and buffers

* Input clock frequency up to 156 MHz

* Ou

ICS542 General Description

The ICS542 is cost effective way to produce a high-quality clock output divided from a clock input. The chip accepts a clock input up to 156 MHz at 3.3 V and produces a divide by 2, 4, 6, 8, 12, or 16 of the input clock. There are two outputs on the chip, one being a low-skew divide by two of the ot.

ICS542 Datasheet (298.66 KB)

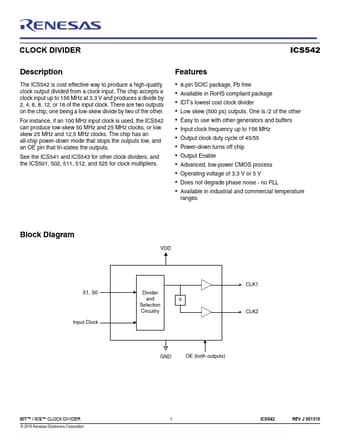

Preview of ICS542 PDF

Datasheet Details

Part number:

ICS542

Manufacturer:

Renesas ↗

File Size:

298.66 KB

Description:

Clock divider.
