ICS951601 - General Purpose Frequency Timing Generator

ICS951601 Description

ICS951601 Preliminary Product Preview General Purpose Frequency Timing Generator Recommended Application: General Purpose Clock Generator Output Fea.
Pin number Pin name 1 REF0 2, 13, 18, 21, 26, VDD 33, 38, 46 3 X1 4 X2 9, 44 VDDA 10, 30, 36, 42 SELxx 5, 14, 17, 22, 27, 32, 39, 47 GND.

ICS951601 Features

* 17 - PCI clocks selectable, either 33.33MHz or 66.6MHz @ 3.3V
* 1 - 48MHz @ 3.3V
* 1 - REF @ 3.3V, 14.318MHz. Features:
* Programable Spread spectrum precentage for EMI control
* Uses external 14.318MHz crystal
* Select pins for frequency select Ke

📥 Download Datasheet

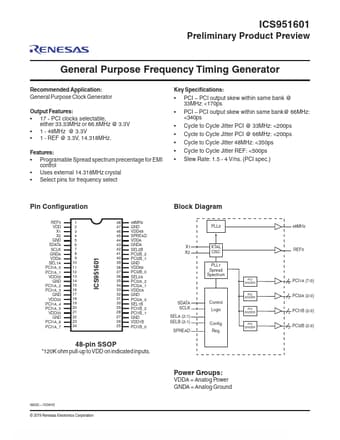

Preview of ICS951601 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ICS951601
Manufacturer
Renesas ↗
File Size
333.76 KB
Datasheet
ICS951601-Renesas.pdf
Description
General Purpose Frequency Timing Generator
