ICSSSTVA16859C Datasheet - Renesas

ICSSSTVA16859C DDR 13-Bit to 26-Bit Registered Buffer

The 13-bit-to-26-bit ICSSSTVA16859C is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O levels, except for the LVCMOS RESET# input. Data flow from D to Q is controlled by the differential clock (CLK/CLK#) and a control signal (RESET#). The positive edge of CLK is used t.

ICSSSTVA16859C Features

* Differential clock signals

* Meets SSTL_2 signal data

* Supports SSTL_2 class I specifications on outputs

* Low-voltage operation - VDD = 2.3V to 2.7V

* Available in 64 pin TSSOP and 56 pin MLF packages

* Exceeds ICSSSTVN16859 performance Truth Tab

ICSSSTVA16859C-Renesas.pdf

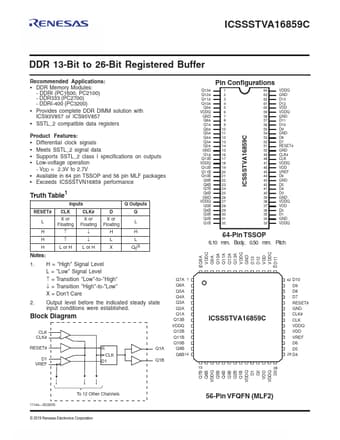

Preview of ICSSSTVA16859C PDF
ICSSSTVA16859C Datasheet Preview Page 2 ICSSSTVA16859C Datasheet Preview Page 3

Datasheet Details

Part number:

ICSSSTVA16859C

Manufacturer:

Renesas ↗

File Size:

495.39 KB

Description:

Ddr 13-bit to 26-bit registered buffer.
