ICSSSTV16857 DDR 14-Bit Registered Buffer

The 14-bit ICSSTV16857 is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O Levels except for the RESET# input which is LVCMOS. Data flow from D to Q is controlled by the differential clock, CLK, CLK# and RESET#. Data is triggered on the positive edge of CLK. CLK# must be.

ICSSSTV16857 Features

* Differential clock signal

* Meets SSTL_2 signal data

* Supports SSTL_2 class I & II specifications

* low-voltage operation VDD = 2.3V to 2.7V

* 48 pin TSSOP package Pin Configuration Q1 Q2 GND VDDQ Q3 Q4 Q5 GND VDDQ Q6 Q7 VDDQ GND Q8 Q9 VDDQ GND Q10 Q11 Q1

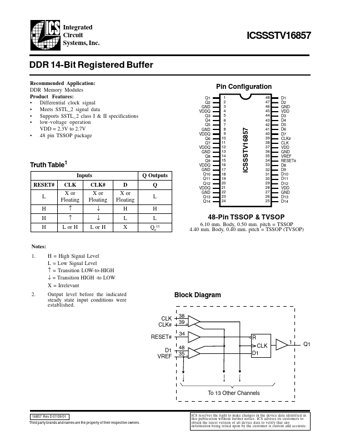

ICSSSTV16857 Datasheet (114.68 KB)

Preview of ICSSSTV16857 PDF

Datasheet Details

Part number:

ICSSSTV16857

Manufacturer:

Integrated Circuit Systems

File Size:

114.68 KB

Description:

Ddr 14-bit registered buffer.
