ICSSSTVF16859 Datasheet - Integrated Circuit Systems

ICSSSTVF16859 DDR 13-Bit to 26-Bit Registered Buffer

The 13-bit-to-26-bit ICSSSTVF16859 is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O levels, except for the LVCMOS RESET# input. Data flow from D to Q is controlled by the differential clock (CLK/CLK#) and a control signal (RESET#). The positive edge of CLK is used to .

ICSSSTVF16859 Features

* Differential clock signals

* Meets SSTL_2 signal data

* Supports SSTL_2 class I specifications on outputs

* Low-voltage operation - VDD = 2.3V to 2.7V

* Available in 64 pin TSSOP and 56 pin MLF packages Pin Configurations Q13A Q12A Q11A Q10A Q9A VDDQ GND Q

ICSSSTVF16859 Datasheet (187.57 KB)

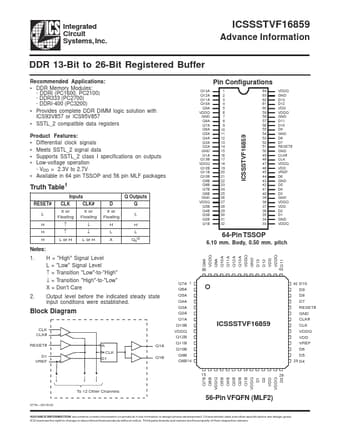

ICSSSTVF16859 Datasheet Preview — Preview of ICSSSTVF16859 PDF
