ICSSSTV16859 Datasheet - Integrated Circuit Systems

ICSSSTV16859 DDR 13-Bit to 26-Bit Registered Buffer

The 13-bit to 26-bit ICSSTV16859 is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O Levels except for the RESET# input which is LVCMOS. Data flow from D to Q is controlled by the differential clock, CLK, CLK# and RESET#. Data is triggered on the positive edge of CLK. CL.

ICSSSTV16859 Features

* Differential clock signals

* Meets SSTL_2 signal data

* Supports SSTL_2 class II specifications on outputs

* low-voltage operation - VDD = 2.3V to 2.7V

* Available in 64 pin TSSOP and 56 pin MLF2 packages Pin Configurations Q13A Q12A Q11A Q10A Q9A VDDQ GND

ICSSSTV16859 Datasheet (233.84 KB)

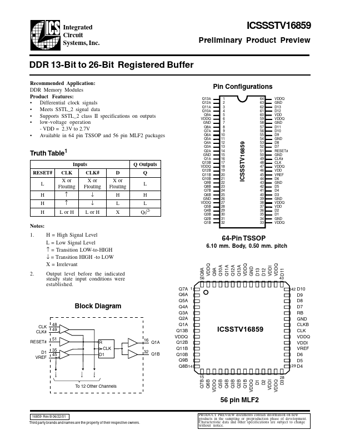

ICSSSTV16859 Datasheet Preview — Preview of ICSSSTV16859 PDF

Datasheet Details

Part number:

ICSSSTV16859

Manufacturer:

Integrated Circuit Systems

File Size:

233.84 KB

Description:

Ddr 13-bit to 26-bit registered buffer.
