ICSSSTVA16857 Datasheet - Integrated Circuit Systems

ICSSSTVA16857 DDR 14-Bit Registered Buffer

The 14-bit ICSSSTVA16857 is a universal bus driver designed for 2.3V to 2.7V VDD operation and SSTL_2 I/O levels, except for the LVCMOS RESET# input. Data flow from D to Q is controlled by the differential clock (CLK/CLK#) and a control signal (RESET#). The positive edge of CLK is used to trigger th.

ICSSSTVA16857 Features

* Exceeds "SSTVN16857" performance

* Differential clock signal

* Meets SSTL_2 signal data

* Supports SSTL_2 class I & II specifications

* Low-voltage operation - VDD = 2.3V to 2.7V

* 48 pin TSSOP package Pin Configuration Q1 Q2 GND VDDQ Q3 Q4 Q5 GND

ICSSSTVA16857_IntegratedCircuitSystems.pdf

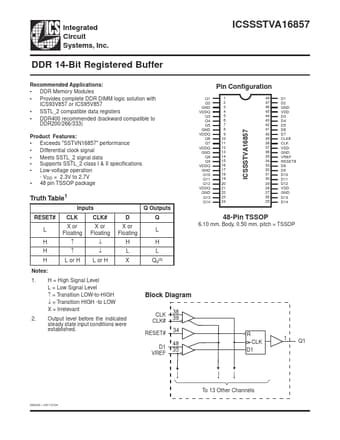

Preview of ICSSSTVA16857 PDF
ICSSSTVA16857 Datasheet Preview Page 2 ICSSSTVA16857 Datasheet Preview Page 3

Datasheet Details

Part number:

ICSSSTVA16857

Manufacturer:

Integrated Circuit Systems

File Size:

73.10 KB

Description:

Ddr 14-bit registered buffer.
