ICSSSTVF16857 - DDR 14-Bit Registered Buffer

ICSSSTVF16857 Description

*ENESAS ICSSSTVF16857 Advance Information DDR 14-Bit Registered Buffer Recommended Applications: * DDR Memory Modules * Provide.

ICSSSTVF16857 Features

* Differential clock signal
* Meets SSTL_2 signal data
* Supports SSTL_2 class I & II specifications
* Low-voltage operation - Voo = 2.3V to2.7V
* 48 pin TSS OP and TVS OP package Truth Table1 Inputs RESET# CLK CLK# L Xor Xor Floating Floating H t J,

ICSSSTVF16857 Applications

* DDR Memory Modules
* Provides complete DDR DIMM logic solution with ICS93V857 or ICS95V857

📥 Download Datasheet

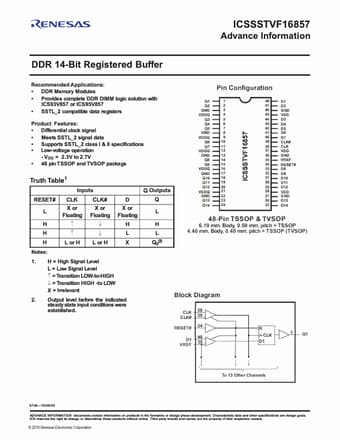

Preview of ICSSSTVF16857 PDF
datasheet Preview Page 2 datasheet Preview Page 3
